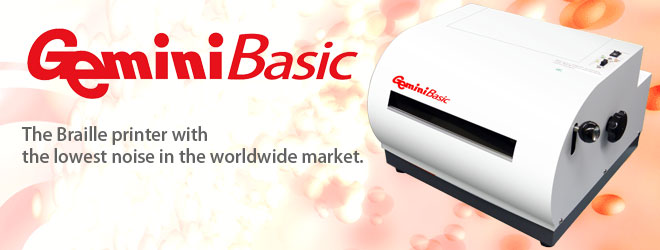

Gemini Basic

The Braille printer with the lowest noise in the worldwide market.
  • Gemini Basic is an efficient Braille printer at its quiet operation-emboss Braille by pushing up pins calmly.
  • Just to connect to a personal computer, then it starts to emboss the Braille.
  • No need to be annoyed with that conventional "Loud noise" any more.
  • The noise level of the Gemini Basic is the lowest one that you have never experienced.
    It is the "Best choice" for the uses at home & office.
  • Double sided printout is also possible.
  • With the very simple and ease of use, blind and visually impaired people can operate just with their fingertips.

Manual Download

Printer Pamphlet

To read this "User's Manual", the" Acrobat reader" need to be installed in your computer.If you don't have this application, please download (Free of charge) and install it following the procedure as below.

Adobereader Download
Adobereader Download


CharacteristicDouble sided print:Braille print(Need to reset the form)
Types of charactersalphabet / numerals / symbols
Number of characters32 cells per line(Braille)
Line per page (10 * 11 inches paper)
24 lines maximum in 6 dots
19 lines on front side / 18 lines on back side when double sided printout
Paper10~11 inches * 10~14 inches Continuous tractor feed paper
Printing speed36characters per second
Print buffer32KByte
InterfaceUSB / RS-232C / Centronics / Network
Sound Level37dB(A)
Power supply / consumption100-120 / 200-240V 50 / 60Hz / 130VA
Size / Weight18.5(W) * 16.5(D) * 12.6(H) inches / 22.5kg


Nippon Telesoft, Co., Ltd
